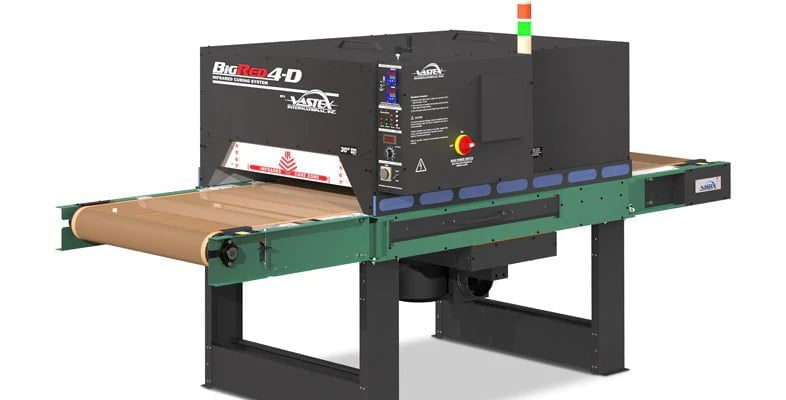

The Vastex BigRed 4D Infrared Conveyor Dryer is built for high-volume direct-to-garment (DTG), direct-to-film (DTF), and automatic screen printing shops. It cures DTG digital inks, screen-printed plastisol, water-based and discharge inks, and DTF adhesives. Choose a 30-inch or 54-inch belt.
Models and rated output
- BR4D-V30 — 30-inch belt, four 24-inch heaters, 11,400 W. Vastex rates it at 475 garments per hour for plastisol or DTF adhesive, 216 for water-based or discharge ink, and 72 for DTG white ink.
- BR4D-V54 — 54-inch belt, four 48-inch heaters, 22,800 W. Vastex rates it at 950 garments per hour for plastisol, 432 for water-based or discharge ink, and 144 for DTG white ink.
DTG white ink ratings assume 2.5 minutes in the heated chamber. Actual output varies with humidity, image size, and material.
Electrical and ordering options
Choose 240 V or the 440–480 V upgrade, with single-phase and three-phase configurations available. The displayed price includes $125 standard crating. Front conveyor extensions and wheel sets can be ordered separately.
Features
- A high-powered preheat zone brings ink above 300°F early in the conveyor path.
- Dual digital PID controls regulate temperature to within ±1°F.
- Filtered intake air, a rotating 6-inch exhaust outlet, and accessible lint filters support ventilation and maintenance.
- Exhaust flow alerts, a status light tower, and a cooldown mode help operators monitor and shut down the dryer.
- The modular conveyor can accept additional heating chambers and extensions. Side heaters are optional. Vastex’s current BigRed 4D product page lists a five-year heater warranty.
Floor-standing equipment ships to the continental U.S.
