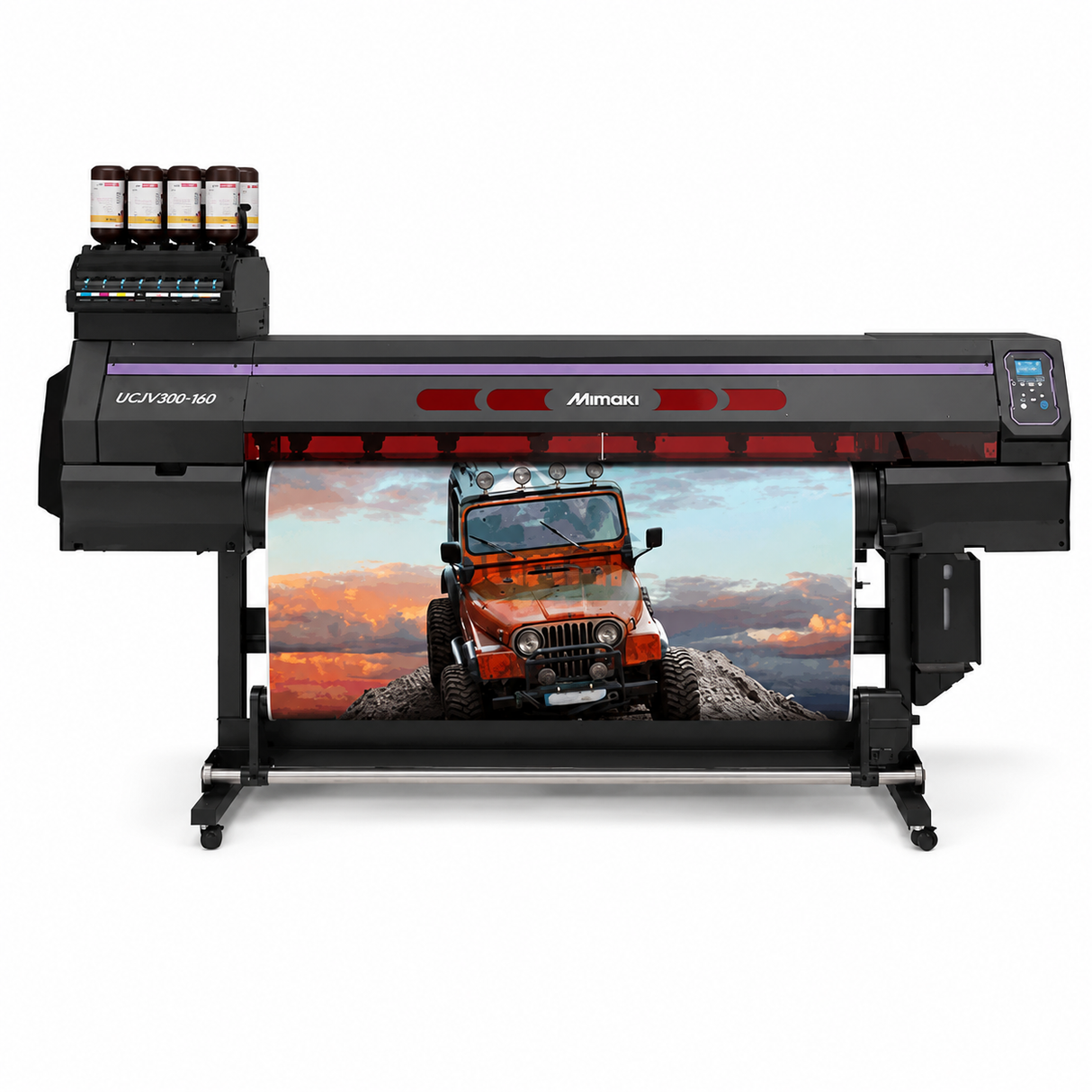

Mimaki UCJV300-160 UV-LED Printer / Cutter – 64"

UV-LED printing and contour cutting in one 64-inch machine.

The Mimaki UCJV300-160 prints with UV-curable LED ink and cuts on the same pass-through, so decals, labels, window graphics and vehicle work come off the roll finished. UV-LED ink cures instantly — no outgassing wait before lamination or application, and no solvent ventilation requirement.

Its layered printing capability builds up to five layers in a single pass, which is what produces the day/night backlit graphics the UCJV series is known for: one image lit from the front, a different image when lit from behind.

Confirmed specifications — UCJV300-160

• Print width: 63.4" (1,610 mm)
• Maximum media width: 63.8" (1,620 mm)
• Ink: UV-curable LED — LUS-170 or LUS-200
• LUS-170 colours: Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, White, Clear
• LUS-200 colours: Cyan, Magenta, Yellow, Black, White
• Print resolutions: 300, 600, 900 and 1200 dpi
• Cutting speed: up to 16.5"/sec, maximum cutting pressure 450 g
• Power: single-phase AC100–120V or AC200–240V (±10%), 50/60 Hz
• Dimensions: 114.2" W × 30.6" D × 58.1" H (2,900 × 776 × 1,475 mm)
• Weight: 414.5 lbs (188 kg)
• Software included: RasterLink6 Plus with ID Cut

Mimaki core technologies

• ID Cut — unattended, sequential cutting driven by data embedded in the print
• Layered printing — up to five layers for day/night and textured effects
• MAPS (Mimaki Advanced Pass System) — reduces banding
• NCU (Nozzle Check Unit) and NRS (Nozzle Recovery System)
• UISS (Uninterrupted Ink Supply System)

Also available

The UCJV300 series also includes the UCJV300-75 (31.5" print width) and UCJV300-107 (42.9" print width). Contact us for those configurations.

Specifications published by Mimaki USA. Contact us to confirm current configuration and lead time before ordering.
