Smooth Kit – Precision Smoothing System for High-Quality Printing

The Smooth Kit is a complete fiber-smoothing system built to eliminate fibrillation and deliver the smoothest, most detailed screen prints possible. By matting garment fibers flat after the flash cure, it creates a hard, press-like surface so every overprinted color lays down crisp, vibrant, and high-resolution. Choose the configuration that fits your shop — from the standalone smoothing frame, to the Starter Kit, to the fully loaded Ultimate Kit — all available for most automatic presses (a manual version is also available).

Why Smoothing Works

During the underbase print, fabric fibers lift as the mesh releases from the garment, leaving a rough, fuzzy texture that dulls colors and softens detail. Passing a roller squeegee over a PTFE (non-stick) sheet presses those fibers down after flashing, so the next ink layers print on a smooth, firm foundation — the result is sharper detail, brighter color, and a softer hand feel.

Choose Your Configuration

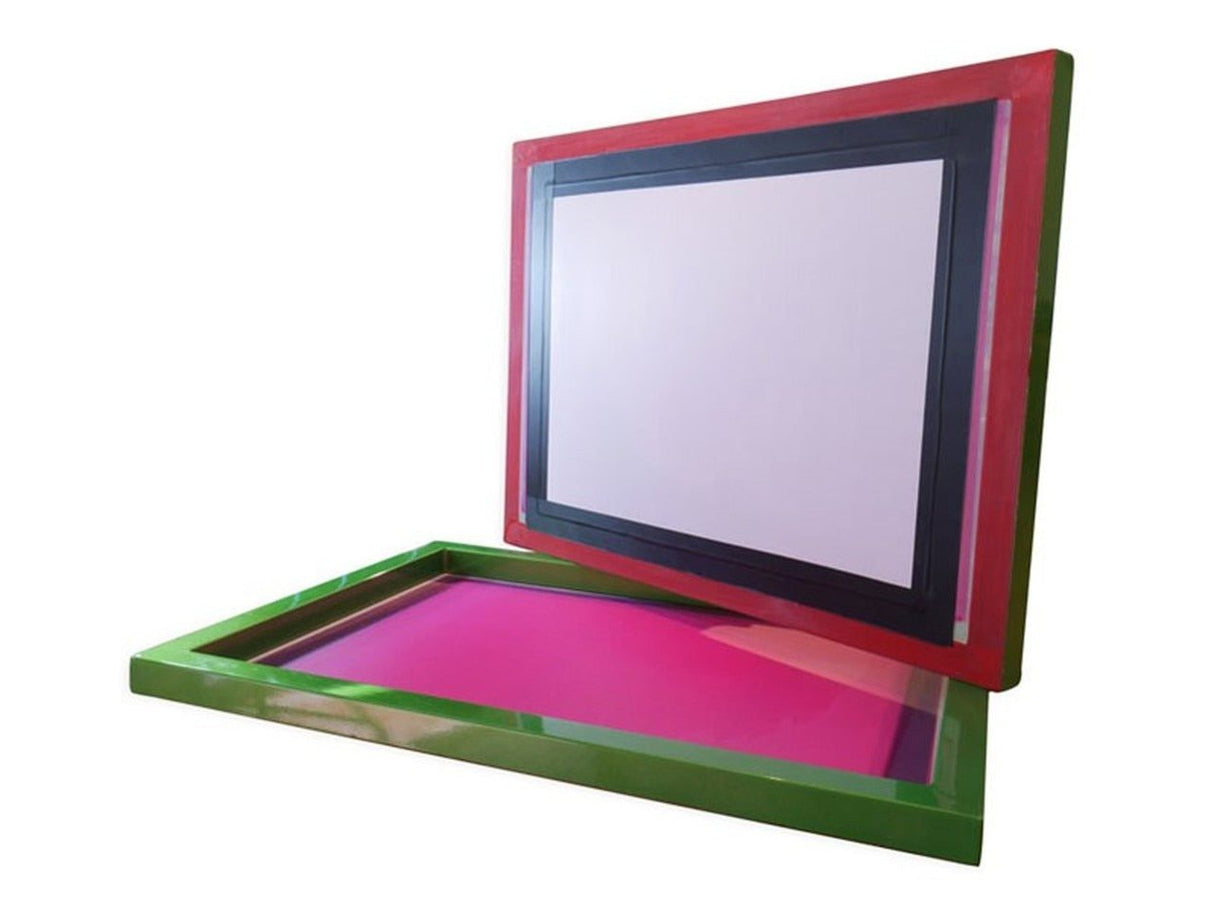

1. Smoothing Frame (23" x 31") — the core tool

A precision-engineered smoothing frame for roller-squeegee applications, built to last in a high-volume shop.

• Frame Material: 1.5" aluminum, powder-coated in Action Green
• Mesh: 110 Saati mesh with red polyurethane glue
• Lamination: 0.020" thick virgin PTFE surface
• Finish: Fully coated with blockout and reinforced with a vinyl tape border for extra durability
• Size: 23" x 31"

2. 16" Starter Kit

Everything you need to start smoothing, matched to your press. Includes: 1 x 23" x 31" Smoothing Frame, 1 x PTFE Sheet, and 1 x 16" Roller Squeegee.

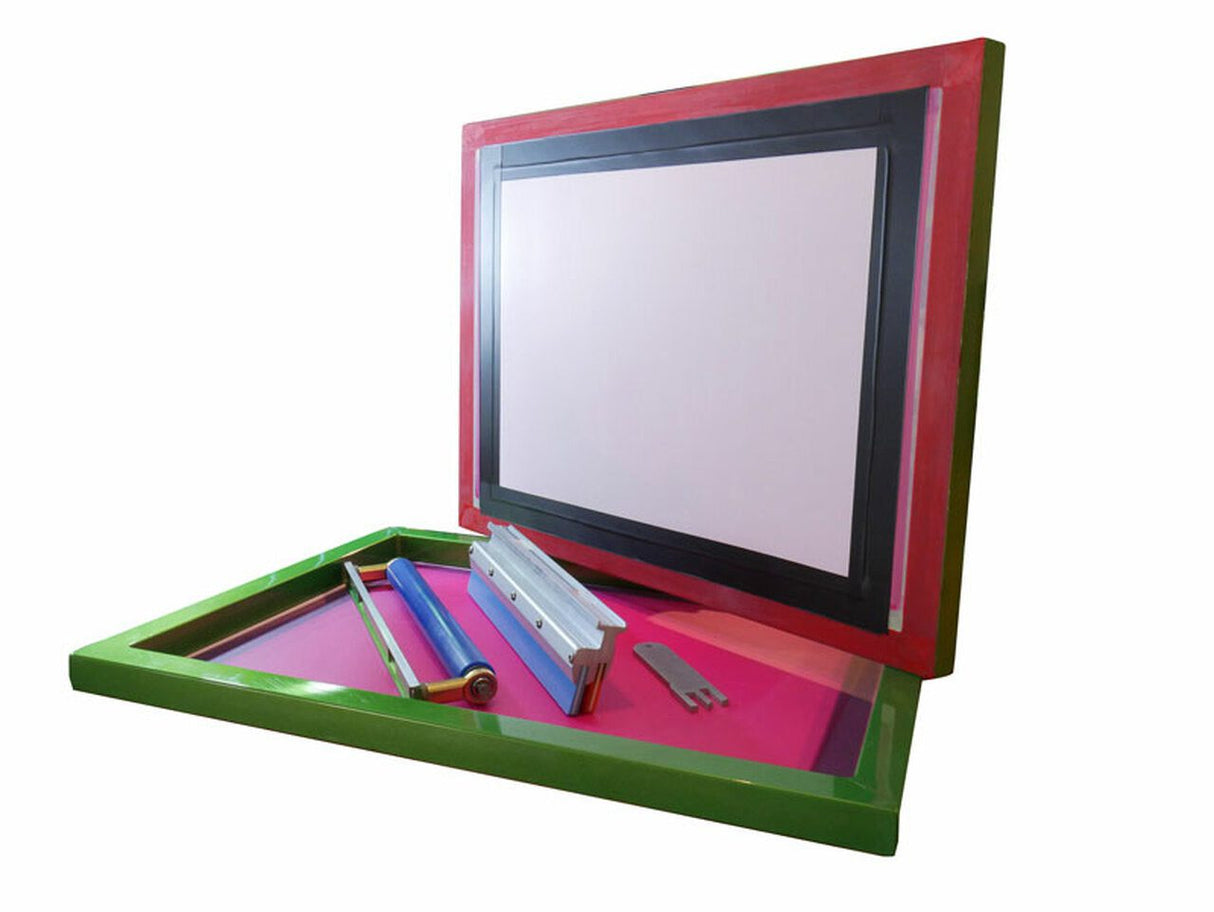

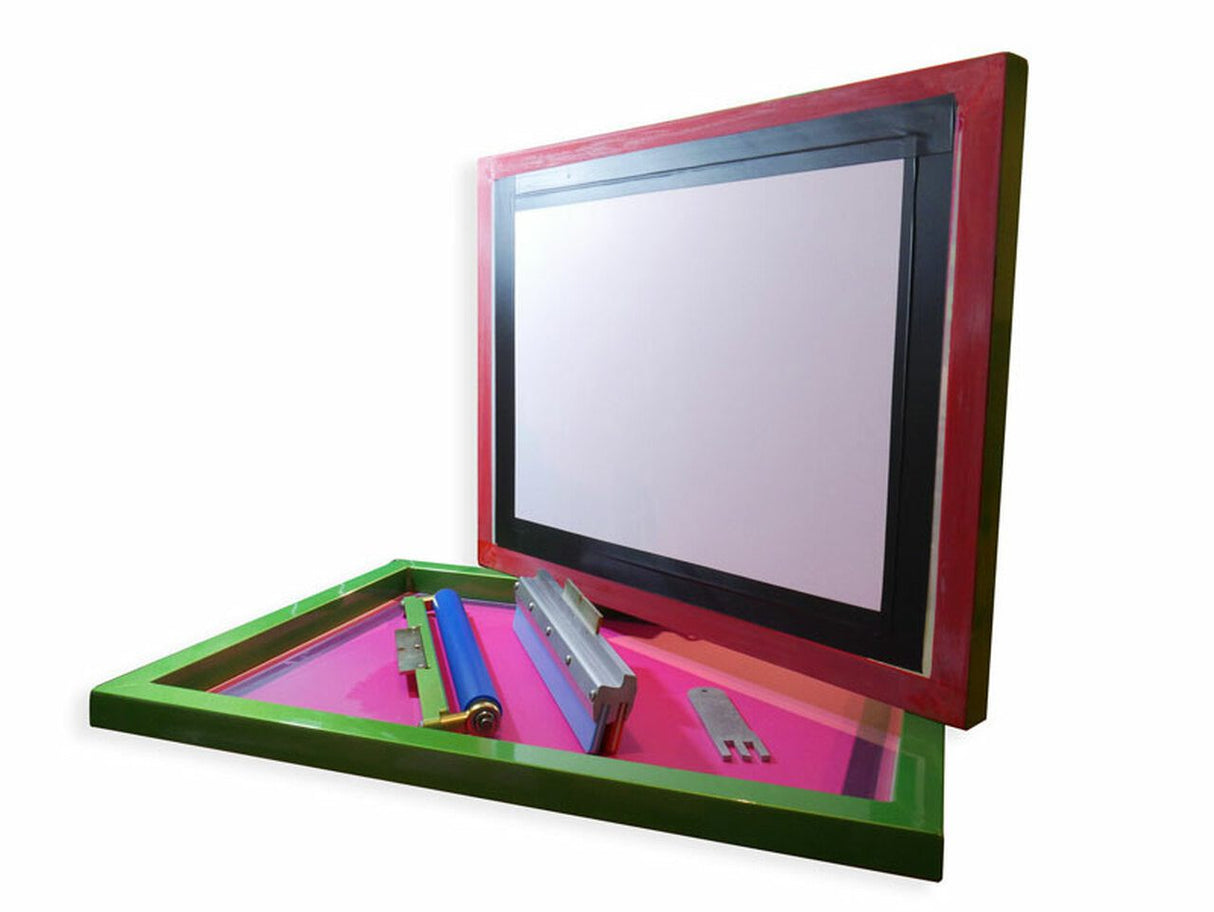

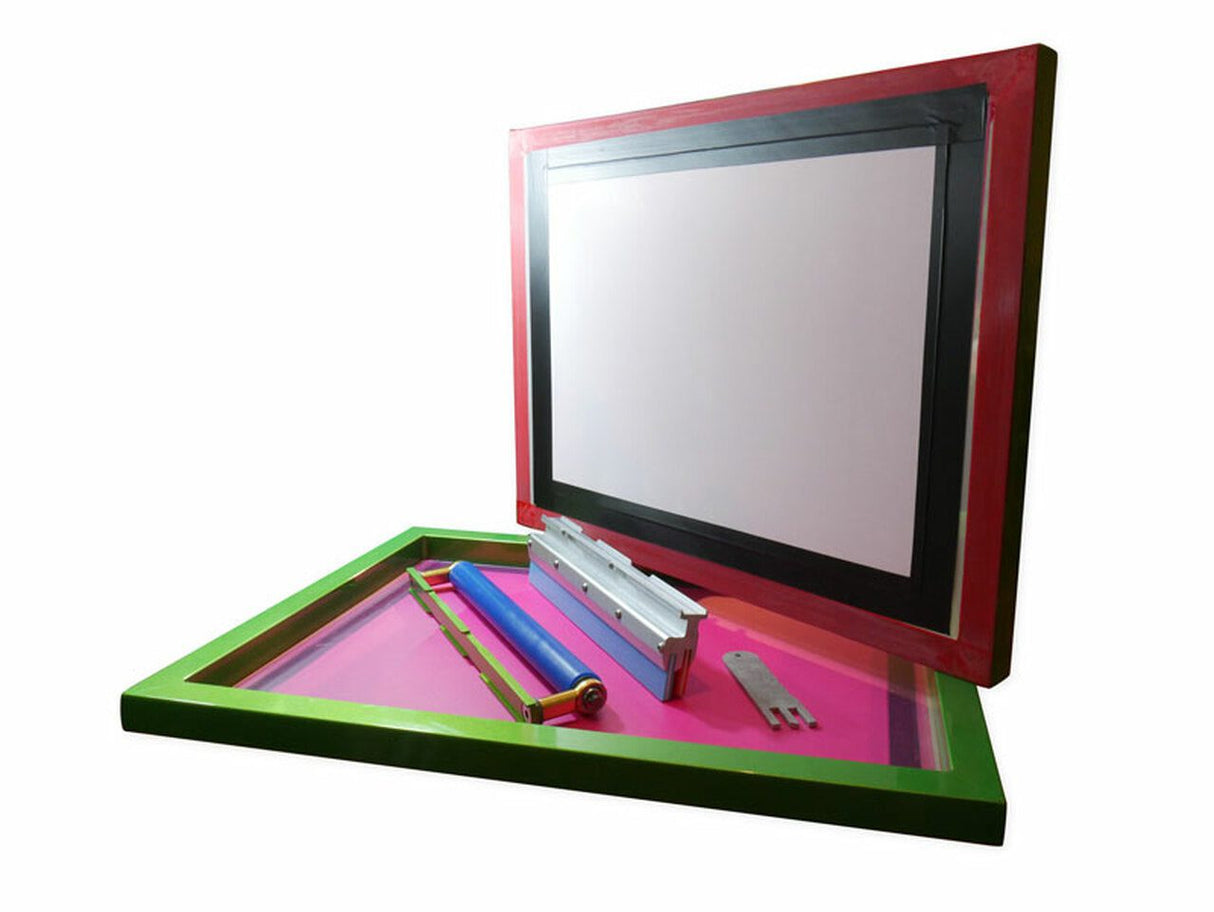

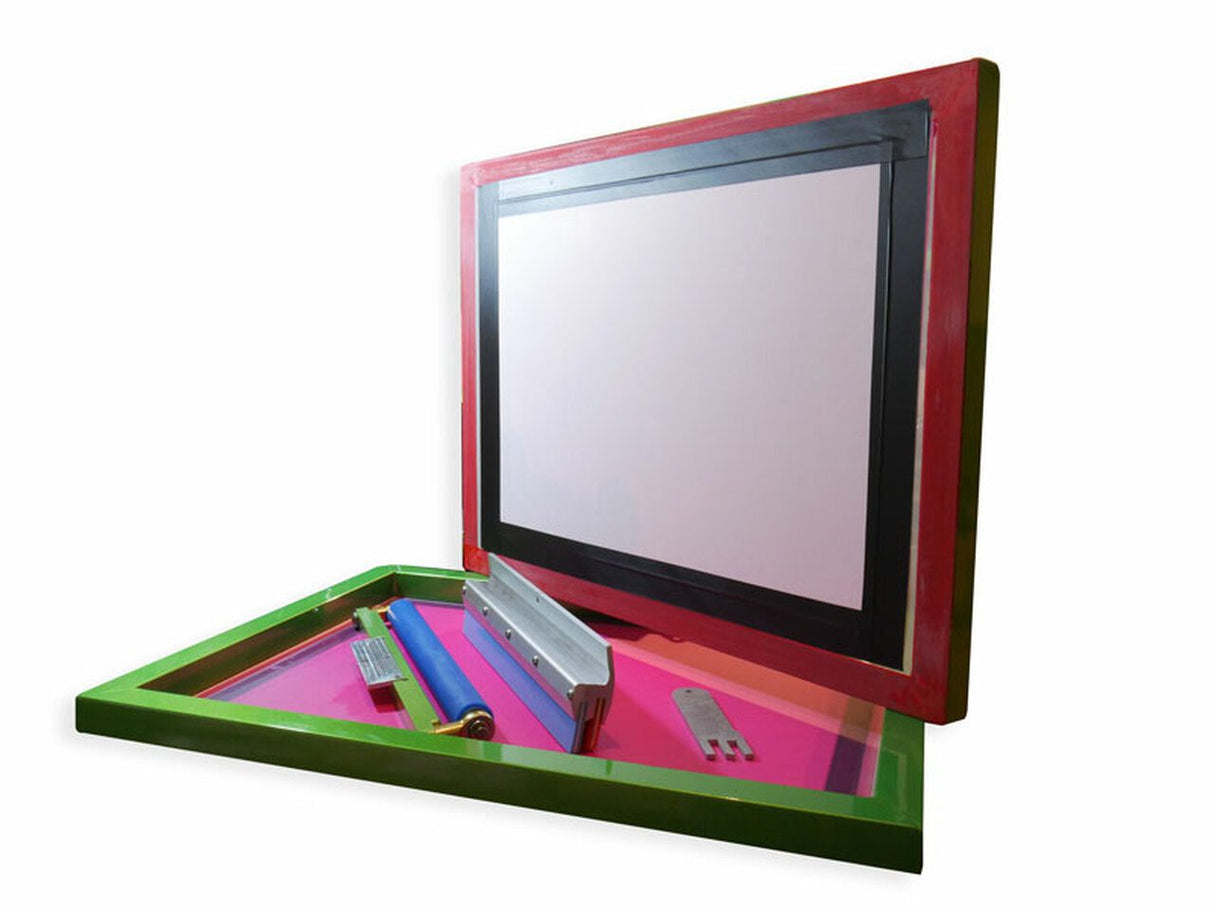

3. 16" Ultimate Smoothing Kit

Our most complete package for shops that want flawless results and maximum efficiency. Includes: 23" x 31" Smoothing Frame with PTFE, 16" Roller Squeegee, Double Blade Squeegee for superior ink control, and a Squeegee Cleaner to keep your tools in optimal condition.

Key Benefits

✔ Eliminates Fibrillation — Flattens garment fibers after flashing for sharper, more detailed prints.
✔ Enhances Color Vibrancy — Provides a solid, even base for overprint colors.
✔ Creates a Press-Like Finish — Works like a heat press on your machine for a smooth, firm surface.
✔ Non-Stick PTFE Surface — Ensures consistent, ultra-smooth results pass after pass.
✔ Built to Last — Rugged aluminum frame and durable components for high-volume production.
✔ Broad Compatibility — Configurations for Anatol, M&R, Workhorse, Workhorse Automatic, TAS, ROQ, and MHM presses, with a manual version available.

How It Works

1️⃣ Print & Flash — Print your underbase and flash cure as normal.
2️⃣ Roller Squeegee Pass — Instead of a standard flood stroke, roll over the PTFE sheet to press the fibers down.
3️⃣ Continue Printing — Print your remaining colors on the now smooth, firm surface for retail-quality results.

Take your screen printing quality to the next level with the Smooth Kit — order today and perfect your prints!
